The project´s main goal is to generate a center for sustainable development, where a gathering of different culture and forming of a new mixed identity through architecture and different building construction techniques is achieved. The center will be situated north of the existing multipurpose room in order to include the present trees in its concept and therefore be a role model to local people as a sign against deforestation. The main entrance is positioned to the street in the west and near the existing well. The arrangement of the buildings was planned regarding three main building phases, anticipating a construction beginning from the south to the north. In order to provide collective spaces for interaction of the local people and defining retreat spaces for volunteers and NGO workers, a 2-yard constellation divided by the vernacular insaka-like kitchen, was chosen. The yard in combination with typical Zambian framework for creeping plants preceding the buildings and a retention basin will create a microclimate through evaporation and therefore help to cool the surrounding buildings. The main walls face the prevailing wind direction from the east, which is beneficial for the cooling cross ventilation of the buildings.

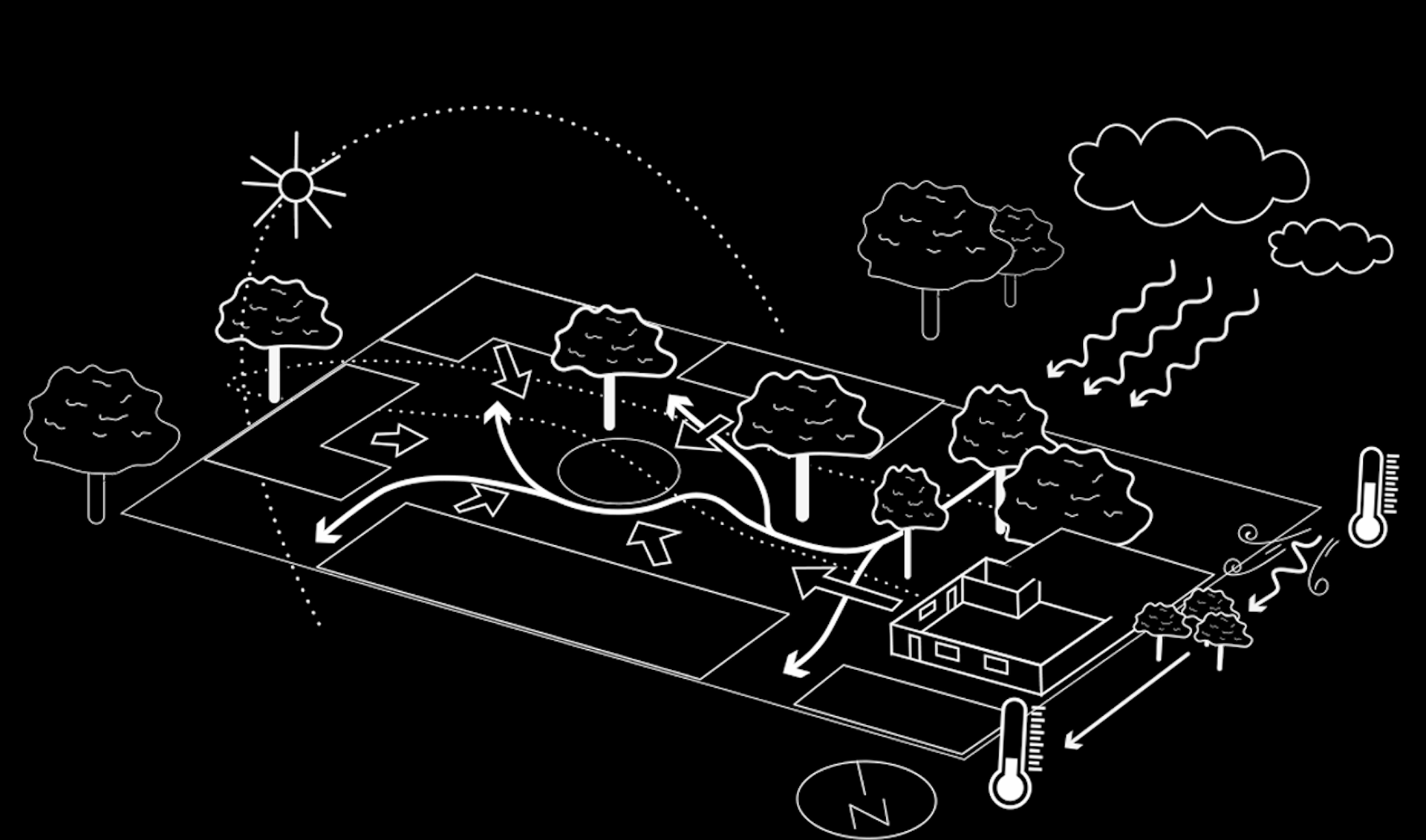

Preservation of trees, north-south orientation for better ventilation. Roof overhangs towards the sun. Plant frameworks and a retention basin create a cooler microclimate through evaporation.

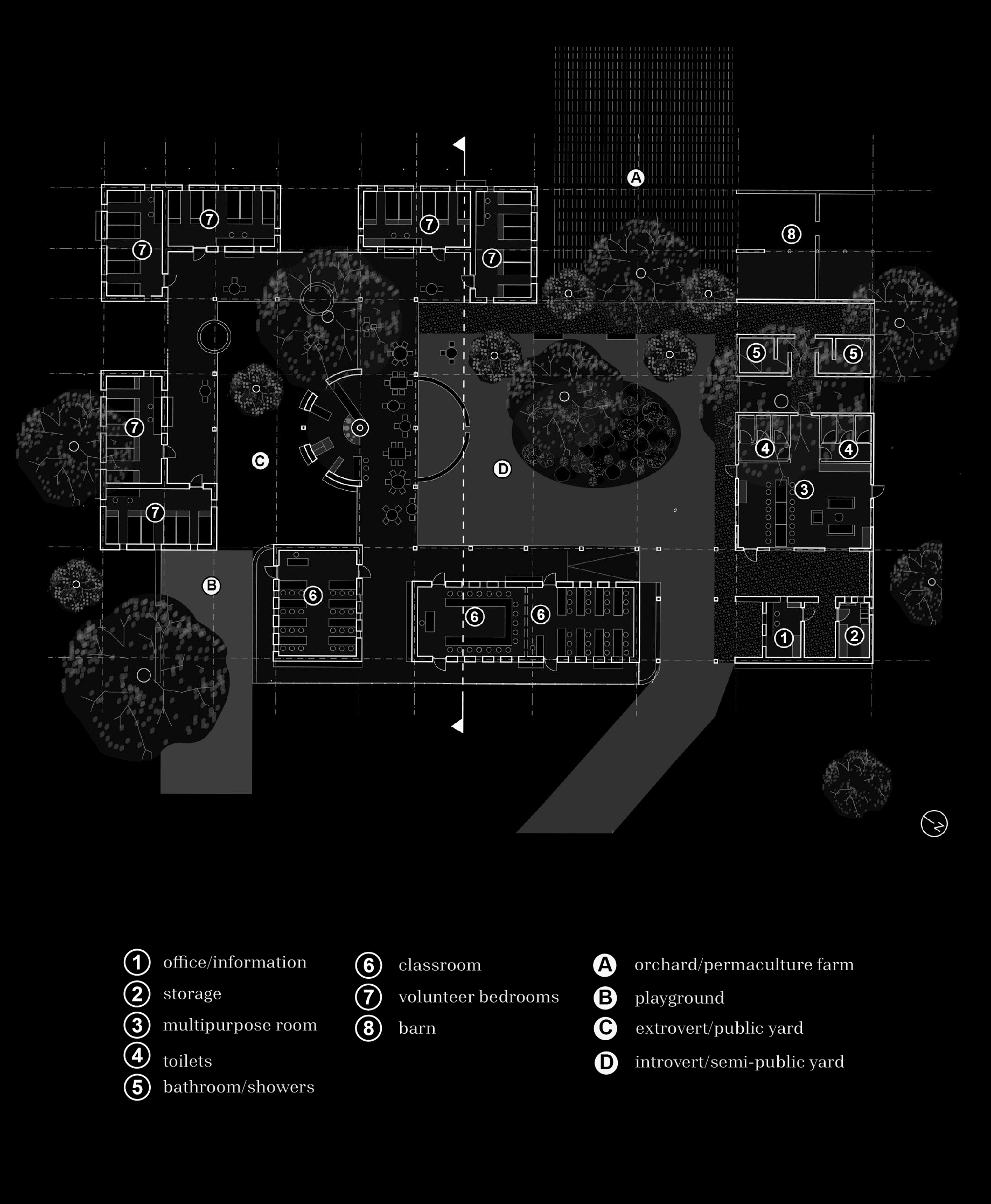

Classrooms face the street, sleeping rooms face the plains, with an Insaka-style kitchen as the center, creating two yards for community interaction and retreat spaces. The office is located at the entrance.

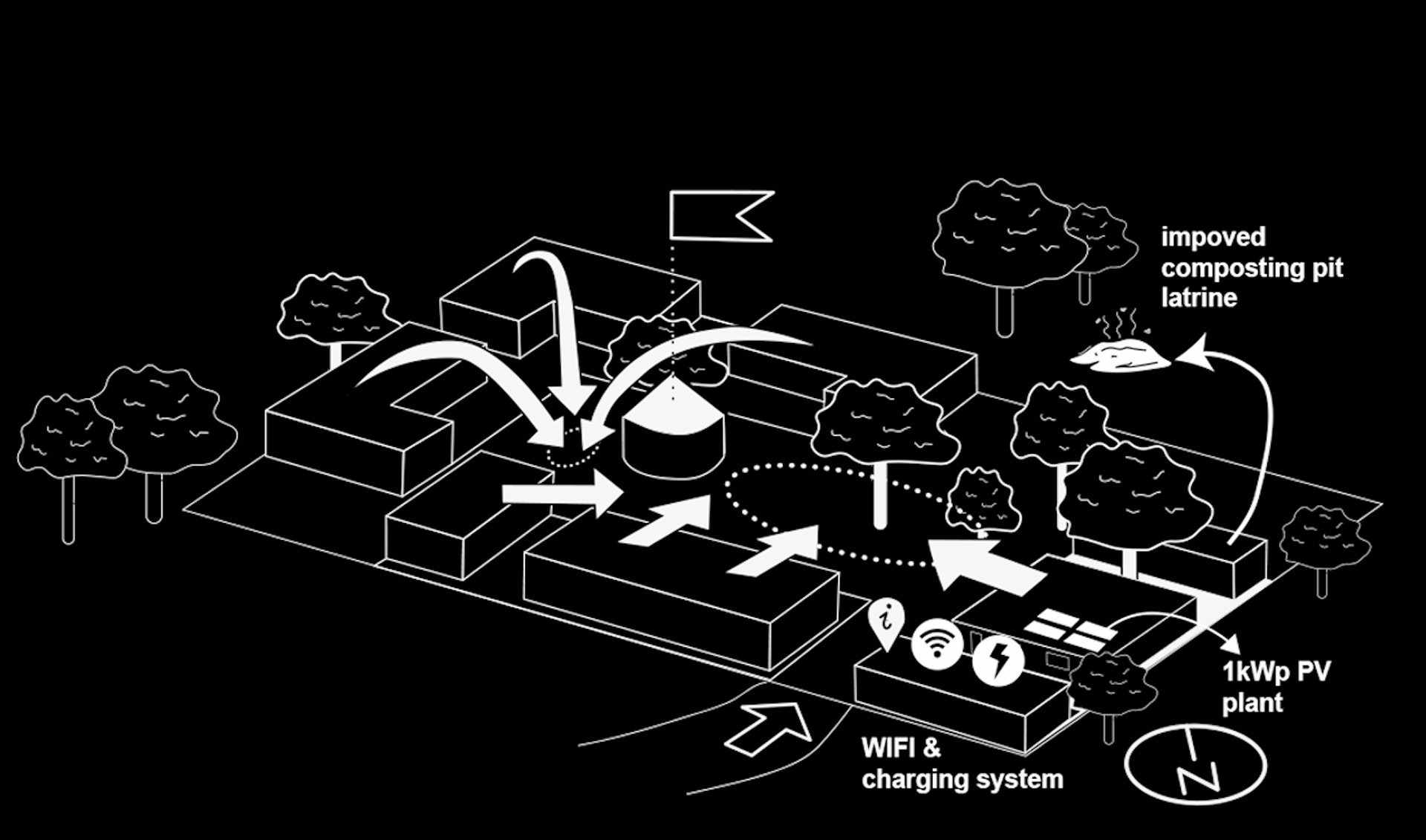

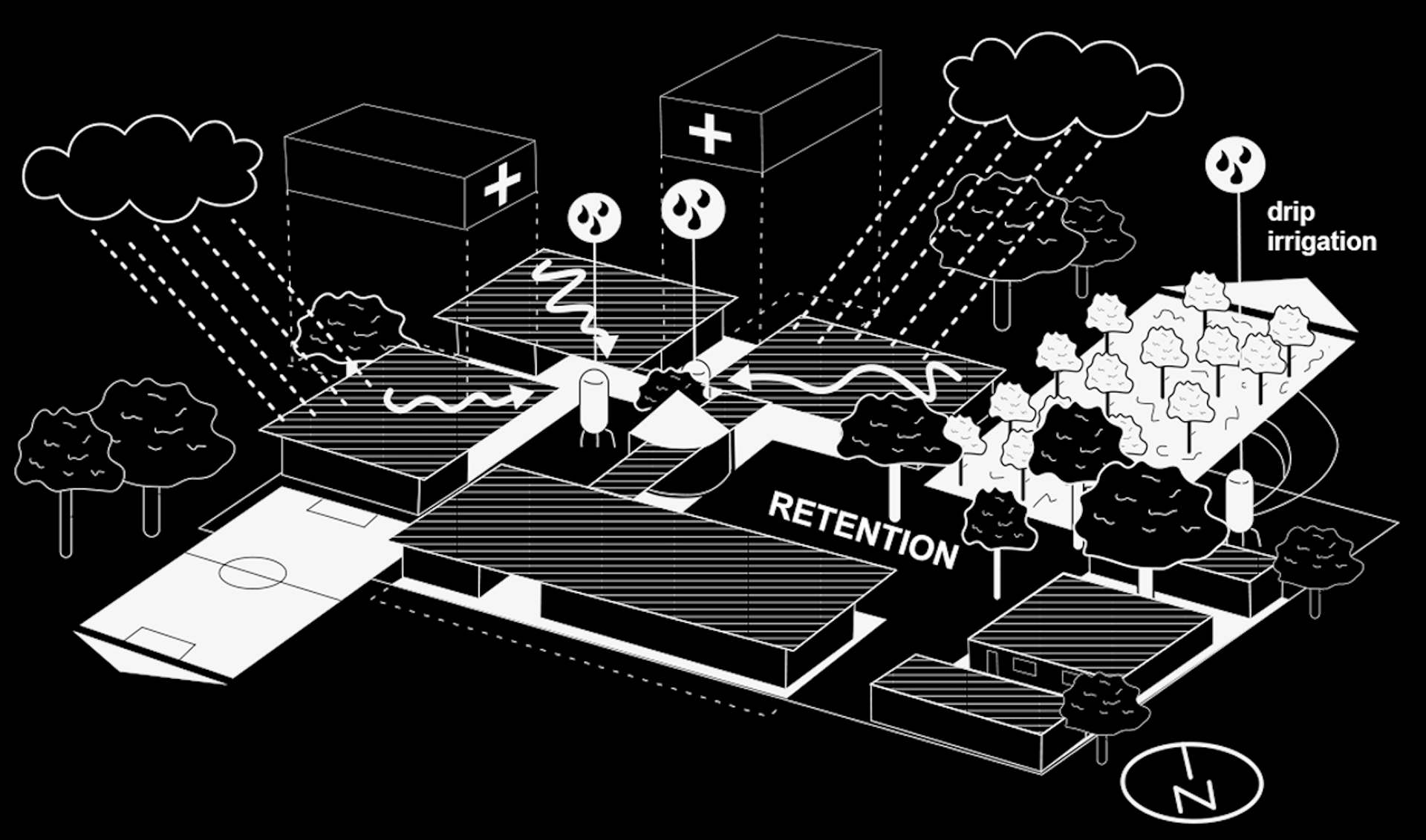

Rainwater is collected via optimized roofs for showers, drip irrigation, and cooking. The yard connects to a permaculture orchard in the southeast and a soccer field in the northwest. Transition zones between buildings offer sheltered spaces and can serve as extensions. All buildings are linked by shaded, roofed walkways.
System & Programm
The project aims to create a sustainable development center that fosters cultural exchange and a shared identity through architecture and interaction. The design preserves existing trees by situating the center north of the multipurpose room. Classrooms and sleeping rooms are arranged around an insaka-like kitchen, forming two courtyards that provide communal spaces for locals and retreat areas for volunteers and NGO workers.
The Process

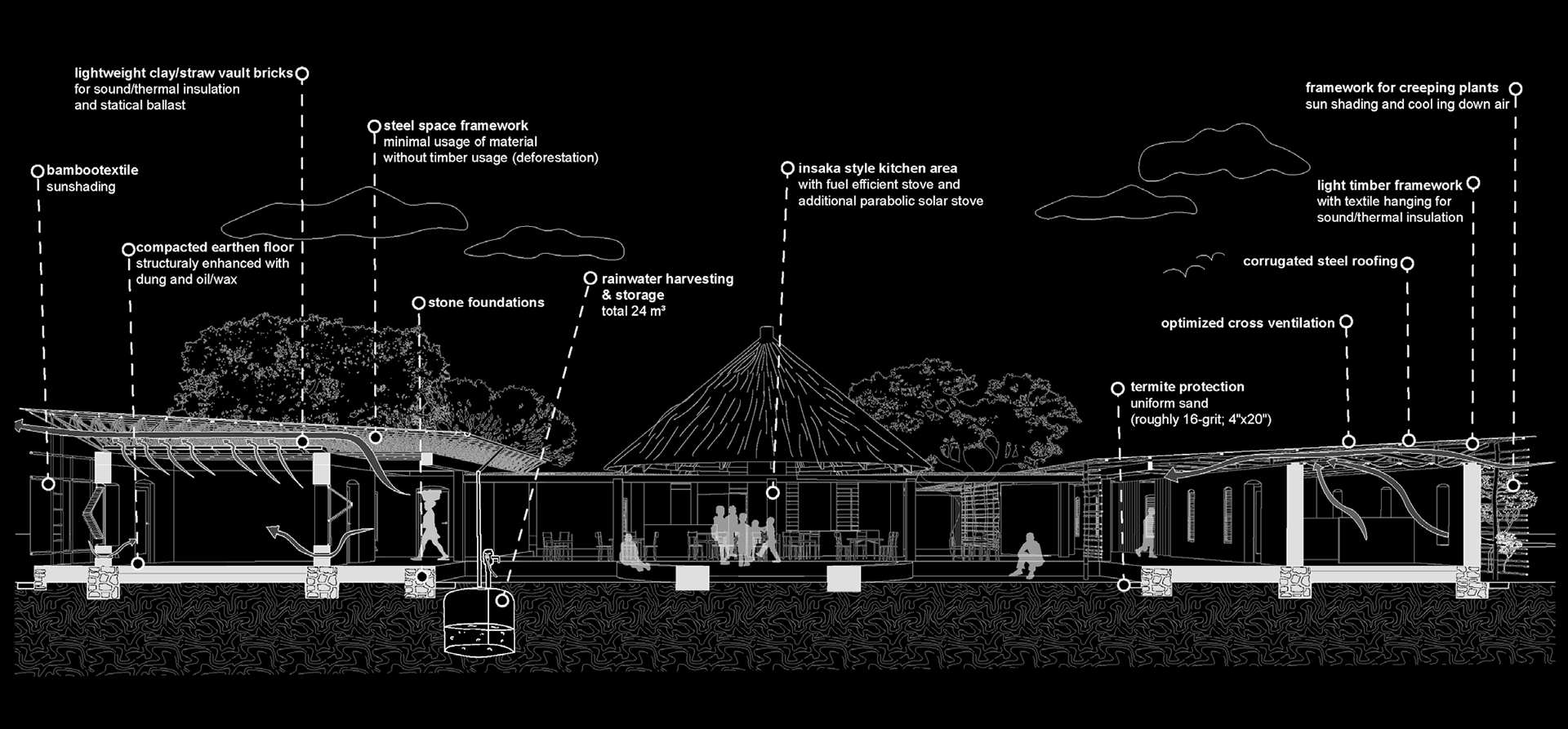

The construction process employs simple, replicable methods using local materials (clay, sand, wood, stones) and modular designs. Sleeping room roofs use wooden trusses, while classrooms feature steel frameworks to address deforestation and earthquake risks. Community participation is encouraged through activities like ramming earth walls and compacting floors, accompanied by rhythmic singing.
